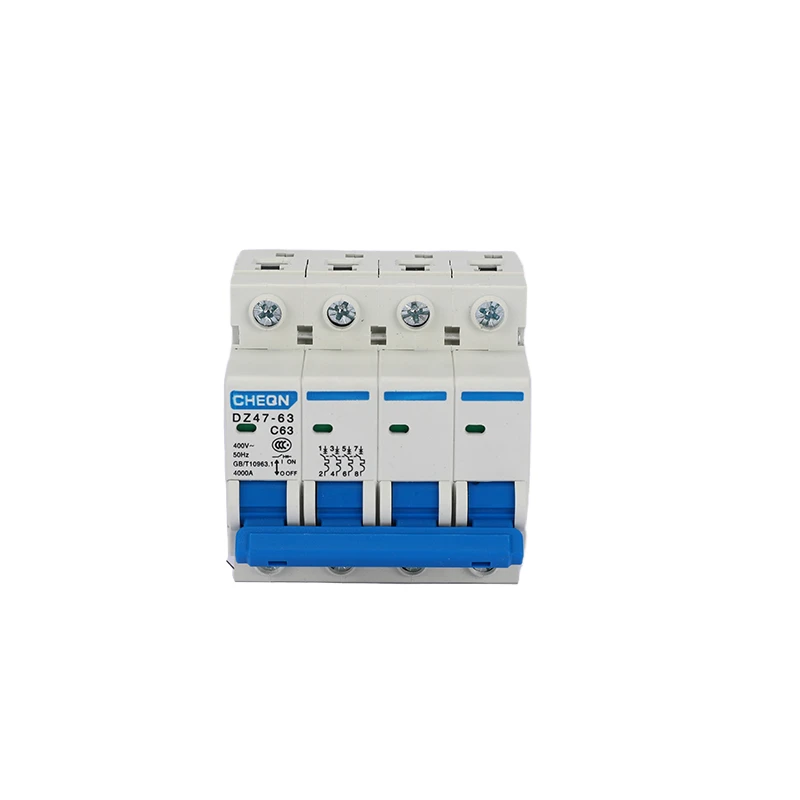

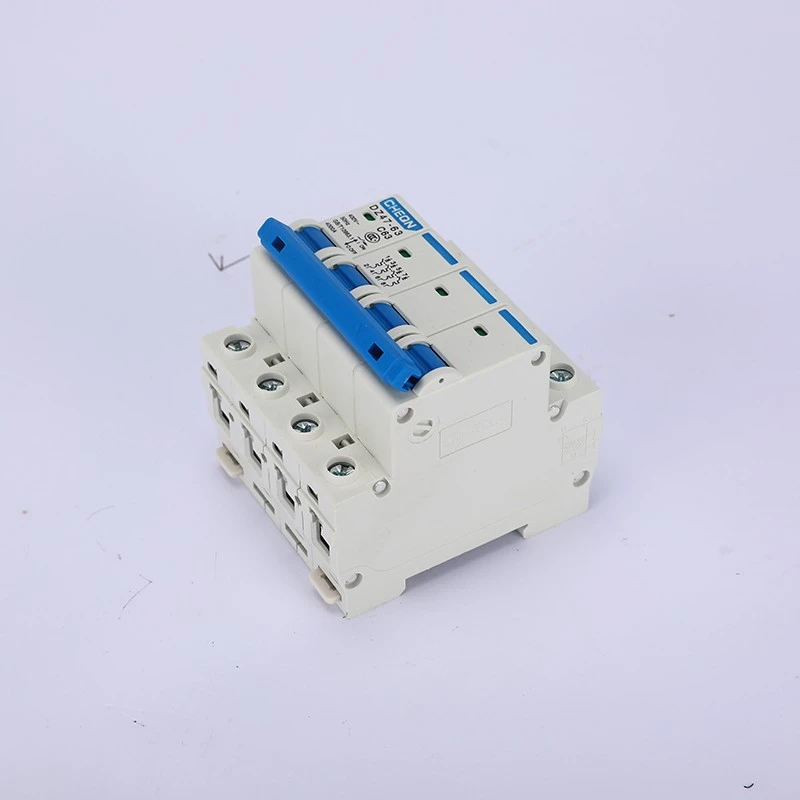

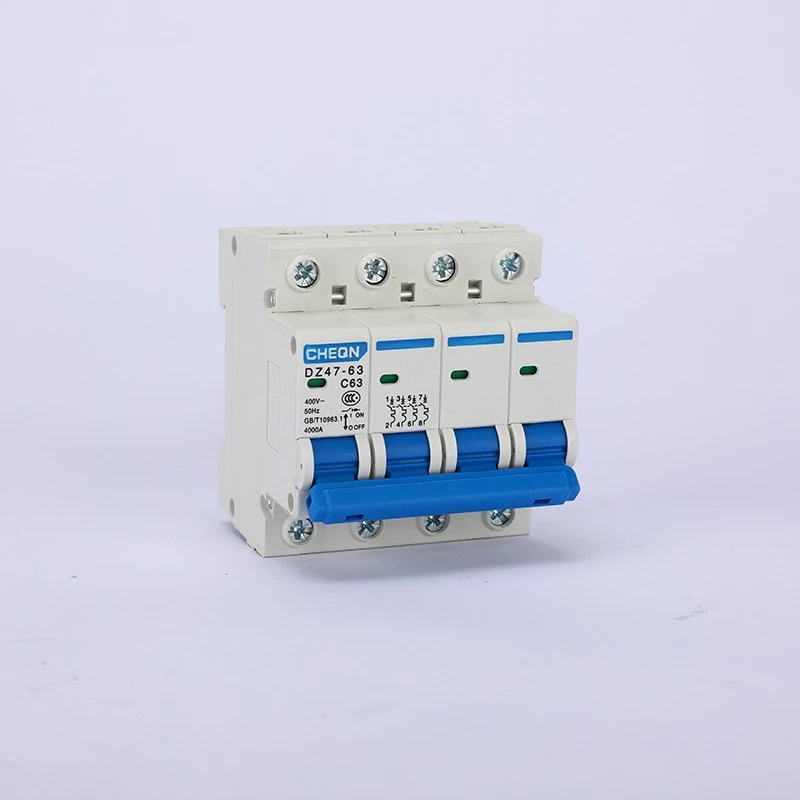

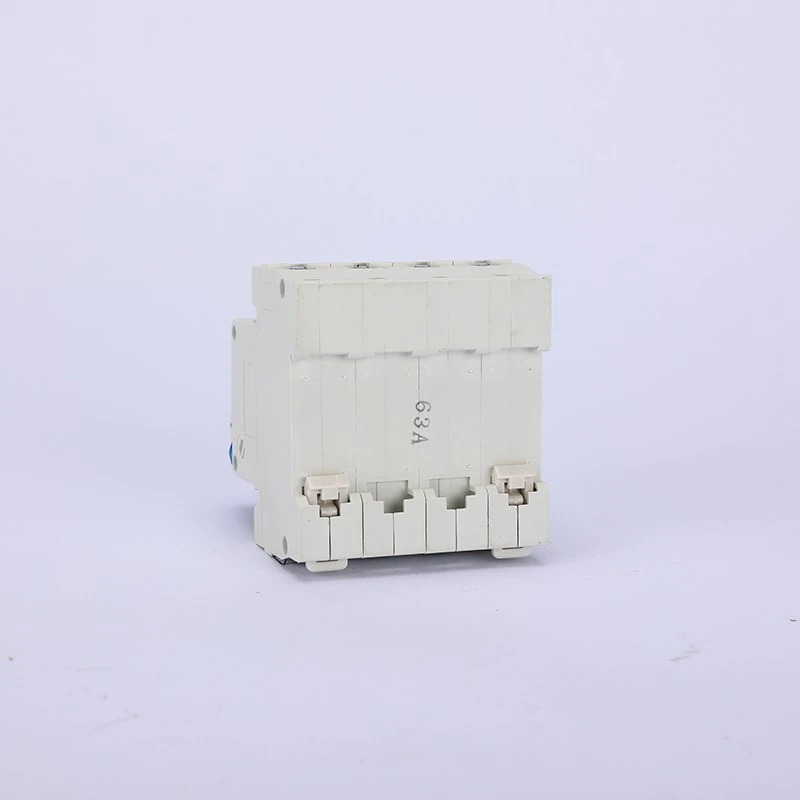

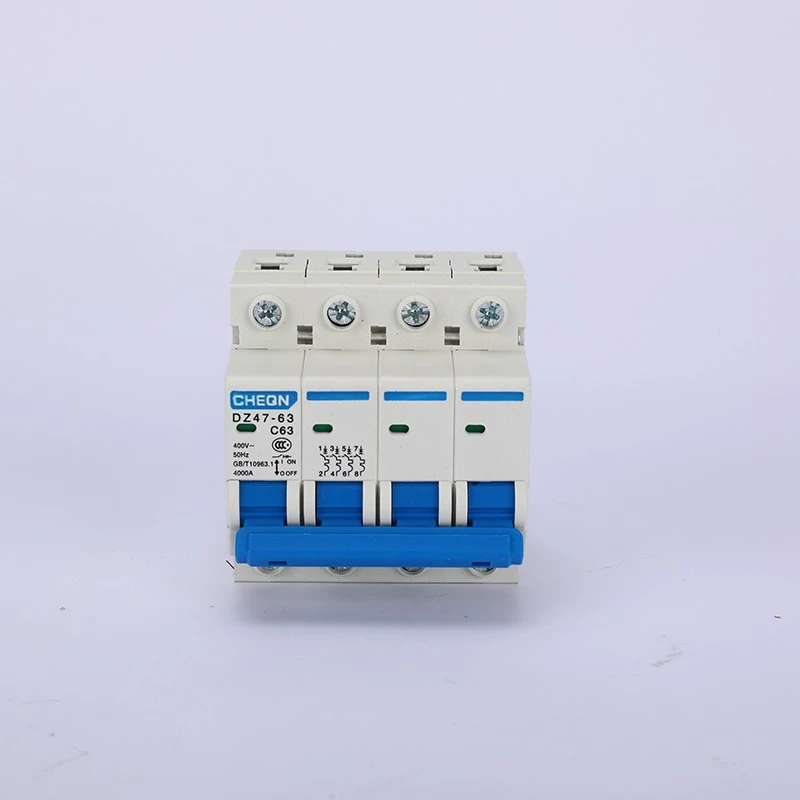

DZ47-63 4P MCB
The Contractor's Choice for Three-Phase Boards
QHECO - Shandong Qinghua Yike Electric Co., Ltd.
What Electricians Actually Care About
We asked 200 electrical contractors what frustrates them most about MCBs. Their answers shaped this product.
| Contractor Pain Point | How DZ47-63 Solves It |
|---|---|
| "Can't tell if it's on or off from across the room" | Green indicator window - visible from 3 meters |
| "Takes forever to wire in a crowded panel" | Offset terminals with screwdriver clearance |
| "Customer reset a locked-out breaker" | Optional sealable cover accessory |
| "Not sure which curve I installed six months ago" | Color-coded handles: B=black, C=blue, D=red |
| "Breaker failed but I don't know why" | Contact position indicator shows true status |
The Panel Builder's Math
Space is money. Every module you save is another circuit you can fit.
| Configuration | Traditional 4P | DZ47-63 4P | Space Saved |
|---|---|---|---|
| 12-way 3-phase panel | 15 modules | 12 modules | 20% |
| 18-way 3-phase panel | 22 modules | 18 modules | 18% |
| 24-way 3-phase panel | 30 modules | 24 modules | 20% |
Real impact: A 20% smaller enclosure means:
- Lower steel cost
- Lower shipping cost
- Easier wall mounting
- More installations per van load
The 63A Reality Check
What 63A actually powers:
| Load Type | Typical Current | DZ47-63 C63 Handles |
|---|---|---|
| 3-phase HVAC unit (20kW) | 32A | ✓ With margin |
| Commercial kitchen (30kW) | 48A | ✓ Comfortable |
| Small CNC machine (25kW) | 40A | ✓ With margin |
| Welding station (35kW) | 55A | ✓ Near limit |
| Multiple socket circuits | 40–50A combined | ✓ Standard application |
When NOT to use 63A:
Motor starting current >630A (10×In for C curve) → nuisance trip → use D curve
Continuous load >50A (80% rule for thermal protection) → size up or use dedicated breaker
The 4000A Question
"Is 4000A enough?"
Calculate your prospective short-circuit current:
| Upstream Transformer | Cable Length to Panel | Approximate Ik | 4000A Adequate? |
|---|---|---|---|
| 100kVA | 15m | 2.5kA | ✓ Yes |
| 160kVA | 10m | 4.0kA | ✓ Marginal - verify |
| 160kVA | 5m | 5.5kA | ✗ No - use 6kA version |
| 250kVA | 20m | 4.5kA | ✓ Marginal - verify |
| 250kVA | 10m | 6.5kA | ✗ No - use 6kA version |
When in doubt: Specify 6kA. The cost difference is minimal. The peace of mind is significant.
Physical Specs (What the Manual Doesn't Tell You)
| Feature | Practical Note |
|---|---|
| Weight | 320g - light enough to hold in mouth while wiring (contractor trick) |
| Terminal depth | 18mm - accommodates doubled 16mm² cables |
| Screw head | Pozidriv #2 - standard electrician's screwdriver |
| Toggle force | 8N - firm but not stiff, operable with gloved hand |
| Operating temperature | -25°C to +55°C - works in unheated construction sites |
| Storage temperature | -40°C to +70°C - survives winter delivery in Siberia |
What's in the Box (Literally)
| Item | Details |
|---|---|
| Breaker unit | DZ47-63 C63 4P, factory-tested |
| Instruction leaflet | Wiring diagram, torque spec, curve explanation |
| Packaging | Individual PE bag, 30 units per export carton |
What's NOT included (and why):
Terminal covers - Optional. Some jurisdictions require, others don't. Order separately if needed.
Busbar connectors - Panel-specific. We supply custom busbars for volume orders.
Locking device - Optional accessory for critical applications.
Quality That Shows
Every DZ47-63 carries:
- Laser-marked rating - won't rub off like ink printing
- Batch code - traceable to production date and test report
- CCC mark - mandatory for Chinese market, recognized in multiple jurisdictions
- CE declaration - available for European market variants
- Test documentation: Type test reports for temperature rise, short-circuit, and endurance available on request for project submissions.
When to Call Us
| Situation | Action |
|---|---|
| Standard 63A 4P, immediate delivery | Order online - stock item |
| Custom current rating (e.g., 35A) | Contact us - 500 unit MOQ |
| Special curve (e.g., K curve for motors) | Contact us - engineering review |
| OEM branding (your logo on handle) | Contact us - 1000 unit MOQ |
| Project certification support | Contact us - technical documentation package |
Contact
Shandong Qinghua Yike Electric Co., Ltd.
📧 sdqheco@gmail.com
📱 +86-13864928654
Send your panel layout. We'll verify breaker specification and suggest optimized configuration.
