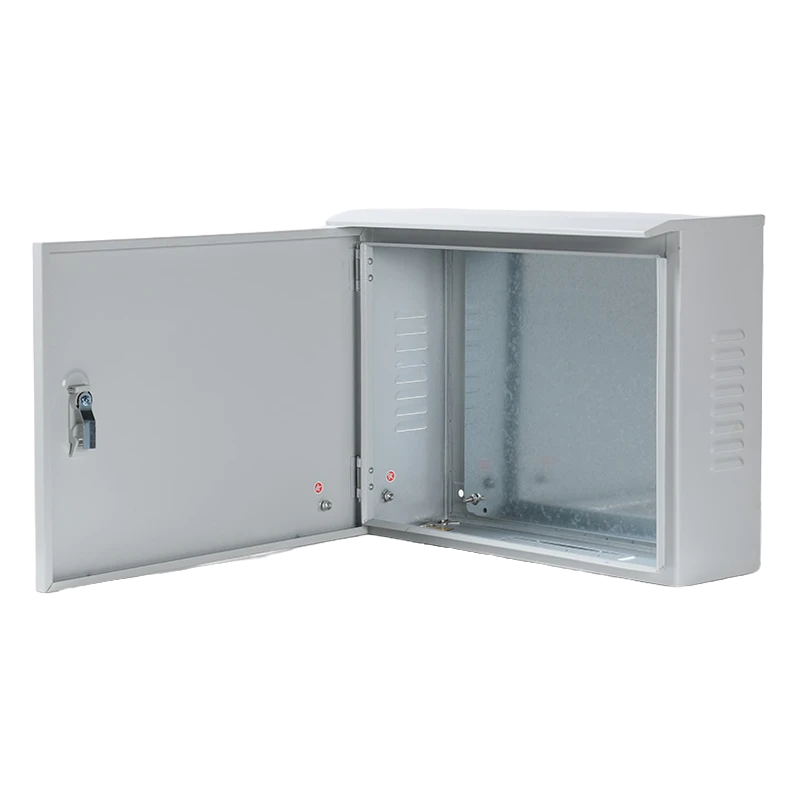

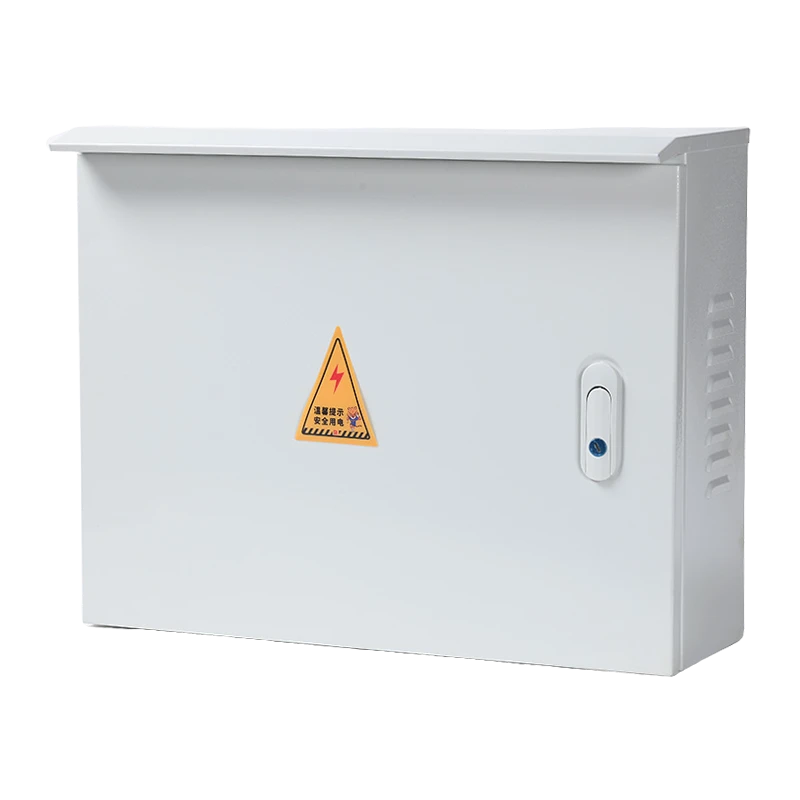

JXF Series Outdoor Waterproof Metal Distribution Box
Product Overview
The JXF Series Outdoor Waterproof Metal Distribution Box is a heavy-duty, IP65-rated enclosure engineered for reliable electrical distribution in harsh outdoor environments. Constructed from galvanized steel with a UV-resistant powder-coated finish, the JXF series delivers superior corrosion protection, impact resistance, and long-term durability - making it the preferred choice for industrial, commercial, and infrastructure applications where exposure to rain, dust, and extreme temperatures is unavoidable.
(QUALITY ASSURANCE)
FOUR ADVANTAGES
Key Features
| Feature | Specification | Benefit |
|---|---|---|
| Protection Rating | IP65 (IEC 60529) | Dust-tight and protected against low-pressure water jets from any direction |
| Material | Galvanized cold-rolled steel | Superior corrosion resistance vs. standard steel |
| Surface Finish | UV-resistant epoxy-polyester powder coating | 500+ hours salt spray resistance; no fading or chalking in direct sun |
| Door Type | Solid steel with continuous gasket seal | Maximum protection; tamper-resistant |
| Locking System | Industrial-grade cam lock with key | Secure access control |
| Mounting | Wall-mounted with heavy-duty brackets | Stable installation in high-wind environments |
| Cable Entry | Multiple knock-out entries (top, bottom, sides) | Flexible routing for various cable sizes |
| Internal Mounting | Removable galvanized steel mounting plate | Easy component installation and maintenance |
| Grounding | Internal earth busbar with terminals | Safety-compliant grounding path |
| Operating Temperature | -30°C to +70°C | Reliable performance in extreme climates |
Available Configurations
表格
| Model | Dimensions (W×H×D mm) | Mounting Plate Size | Typical Application |
|---|---|---|---|
| JXF-250×300×150 | 250 × 300 × 150 | 200 × 250 | Small control panels, sensor enclosures |
| JXF-300×400×200 | 300 × 400 × 200 | 250 × 350 | Motor control centers, pump stations |
| JXF-400×500×200 | 400 × 500 × 200 | 350 × 450 | Distribution boards, solar combiner boxes |
| JXF-500×600×200 | 500 × 600 × 200 | 450 × 550 | Main distribution panels, substations |
| JXF-600×800×200 | 600 × 800 × 200 | 550 × 750 | Large industrial control systems |
| JXF-800×1000×250 | 800 × 1000 × 250 | 750 × 950 | Utility-scale infrastructure, data centers |
Custom dimensions, colors (RAL matching), and special features available on request.
Technical Specifications
表格
| Parameter | Value |
|---|---|
| Enclosure Material | Galvanized cold-rolled steel, 1.2–2.0mm thickness |
| Door Material | Galvanized steel, 1.5mm thickness |
| Mounting Plate | Galvanized steel, 2.0mm thickness |
| Surface Treatment | Zinc phosphate primer + epoxy-polyester powder coat |
| Coating Thickness | 80–120 μm |
| Salt Spray Resistance | 500+ hours (ASTM B117) |
| UV Resistance | 1000+ hours QUV testing |
| IP Rating | IP65 (IEC 60529) |
| Impact Resistance | IK10 (optional) |
| Fire Resistance | IEC 60695-2-11 (glow-wire test 960°C) |
| Standards Compliance | IEC 61439-4, EN 62208, RoHS, CE |
Application Environments
Application Environments
Industrial
Factory automation control panels
Pump and compressor stations
Conveyor system electrical housings
HVAC control enclosure
Infrastructure
Water treatment plant switchgear
Traffic signal control cabinets
Railway signaling equipment
Telecom base station power distribution
Renewable Energy
Solar combiner boxes (DC 1000V)
Wind turbine switchgear
Battery energy storage system (BESS) enclosures
EV charging station distribution
Commercial Outdoor
9900
/MonthlyShopping mall exterior lighting control
Hotel landscape power distribution
Parking lot lighting panels
Building management system (BMS) enclosures
PRODUCT ANALYSIS
Our Excytive Team
Architectural design & planning cepteur sint occaecat cupidatat proident
DUSTPROOF KNOCKOUT HOLES
HIGH QUALITY LOCKS
HIGH STRENGTH HINGE
HOT-DIP GALVANIZED BOTTOM PLATE
ABOUT US
QHECO With 18 years of R&D and production, we are an OEM/ODM high-tech enterprise specializing in the production of high and low voltage power transmission and distribution products, a variety of high and low voltage distribution boxes, customized made distribution equipment. If you are interested in our products, you can contact us at any time, we have professional engineers online for you solve the problem!
CERTIFICATE DISPLAY
Why Choose JXF Series?
✅ True IP65 Protection
Unlike competitors who claim IP65 with basic rubber gaskets, the JXF series features a continuous EPDM gasket with dual-compression design. Independent testing confirms zero water ingress after 3 minutes of direct water jet exposure at 12.5 L/min.
✅ Galvanized Steel Construction
The hot-dip galvanized substrate provides sacrificial corrosion protection even if the coating is scratched. In salt spray testing, JXF enclosures outlast painted standard steel by 400%.
✅ UV-Stabilized Coating
Standard powder coatings chalk and fade within 2–3 years of tropical sun exposure. JXF's UV-stabilized epoxy-polyester formulation maintains color and gloss for 10+ years, reducing maintenance and replacement costs.
✅ Modular Flexibility
The removable mounting plate allows complete pre-wiring outside the enclosure, then simple insertion and connection. This modular approach reduces on-site installation time by up to 50% compared to fixed-back designs.
✅ Global Certification Ready
JXF enclosures are designed to meet IEC 61439-4 as standard, with UL 508A and KEBS compliance packages available. One enclosure platform serves global markets without redesign.
