Q5 Series Plastic Distribution Box

Name: China Universal Electrical Distribution Box Manufacturers Factory - Qinghua Yike
Brand: QHECO
SKU: 308402395

Flush-Mount & Surface-Mount Lighting Distribution Enclosures for Modern Interiors

What Makes Q5 Different

The Q5 isn't just another plastic box. It's the invisible backbone of residential and commercial electrical systems - designed to disappear into walls while keeping circuits organized, accessible, and safe.

Two installation philosophies. One reliable platform.

Q5-Flush	Q5-Surface
Recessed into wall cavity	Mounted directly on wall surface
Clean, minimalist aesthetic	Retrofit-friendly, no wall cutting
Paintable surround matches décor	Quick installation, minimal mess
Ideal for new construction	Perfect for renovations and upgrades

The Problem Q5 Solves

Before Q5	With Q5
Exposed wiring, safety hazard	Concealed, code-compliant installation
Opaque door - open to check circuits	Transparent door - status at a glance
Rusting metal boxes in humid climates	ABS body - corrosion-proof forever
Mismatched colors, eyesore	RAL 9010 pure white - blends with any interior
Limited module capacity	8–36 ways - scales with project size

Product Variants

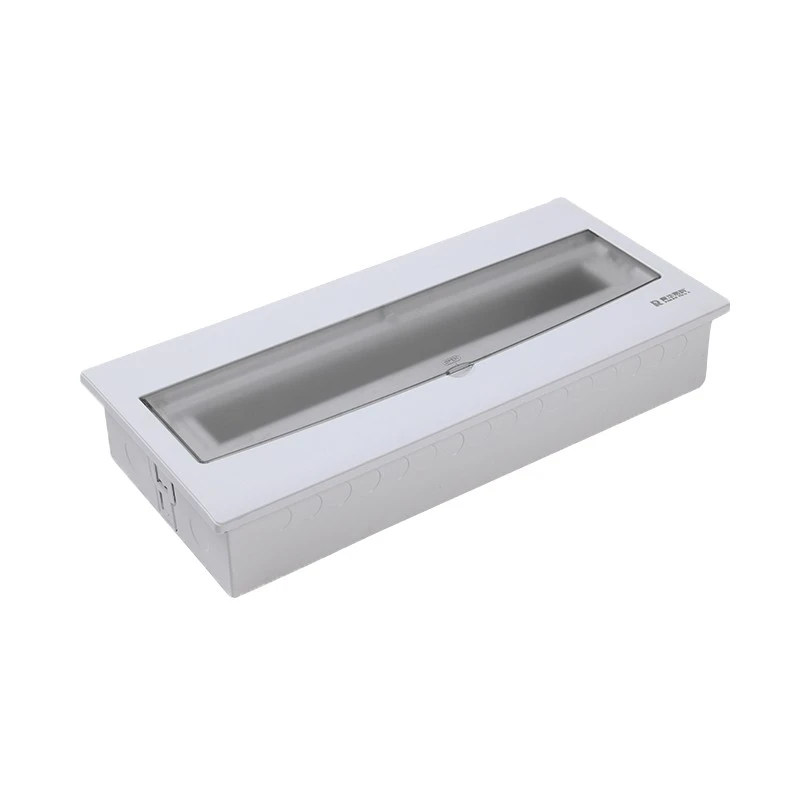

Q5-Flush (Recessed Mount)

For architects and builders who believe electrical should be seen, not heard.

Installation: Recessed into wall cavity; flange sits flush with plasterboard
Door: Transparent PC cover with push-latch; tool-free access
Surround: Paintable ABS frame; matches wall color perfectly
Best for: New residential construction, commercial fit-outs, high-end interiors

Model	Ways	Dimensions (mm)	Mounting Depth
Q5-F-8	8	210 × 220 × 75	60mm
Q5-F-12	12	280 × 250 × 85	70mm
Q5-F-18	18	350 × 280 × 95	80mm
Q5-F-24	24	420 × 300 × 100	85mm
Q5-F-36	36	520 × 320 × 110	95mm

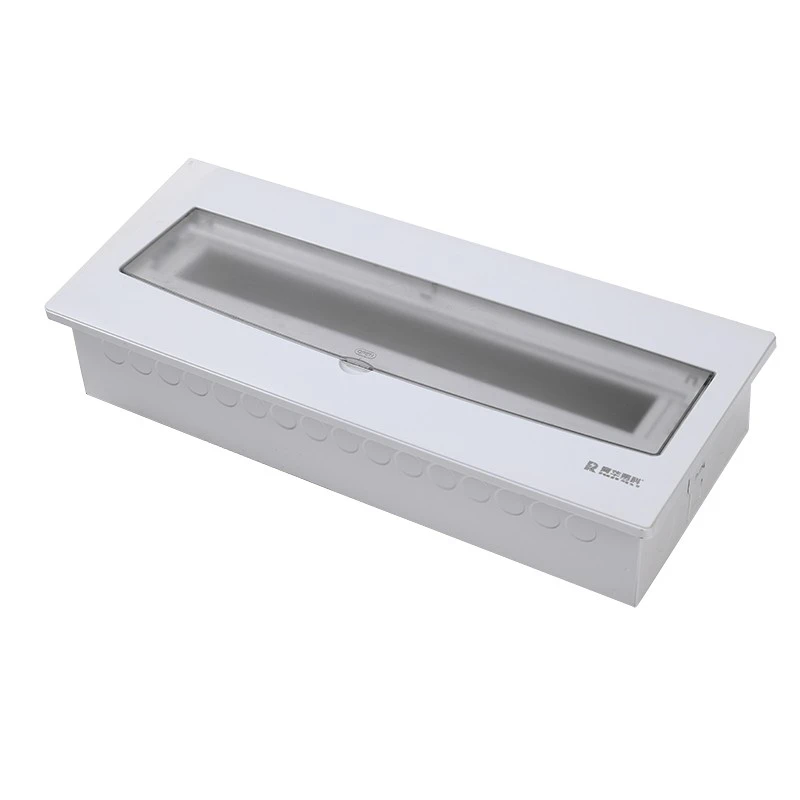

Q5-Surface (Wall Mount)

For contractors who need fast, reliable solutions without rebuilding walls.

Installation: Surface-mounted with screws; no wall cavity required
Door: Transparent PC cover with push-latch; same tool-free access
Body: Slim profile; projects only 45mm from wall
Best for: Renovations, basement conversions, garage installations, commercial retrofits

Model	Ways	Dimensions (mm)	Projection
Q5-S-8	8	210 × 220 × 50	45mm
Q5-S-12	12	280 × 250 × 55	48mm
Q5-S-18	18	350 × 280 × 60	52mm
Q5-S-24	24	420 × 300 × 65	55mm
Q5-S-36	36	520 × 320 × 70	58mm

Details That Matter

The Transparent Door

Not just for looks. Polycarbonate (PC), not cheap acrylic:

UV-stabilized - won't yellow after 5 years

Impact-resistant - IK08 rating survives accidental knocks

Flame-retardant - UL94 V-2, self-extinguishing

Why it matters: Electricians can identify tripped breakers without opening the door. Homeowners can check status without touching live components

The ABS Body

Acrylonitrile Butadiene Styrene, UL94 V-0 flame retardant:

No corrosion - ever. Unlike galvanized steel that rusts in humid bathrooms and kitchens.

No conductivity - safer for residential installations where grounding errors occur.

Lightweight - 60% lighter than metal equivalent. Easier to carry, faster to install

The Knock-Out Entries

Pre-molded on top, bottom, and sides:

20mm and 25mm diameters - standard for residential conduit

Clean break - no sharp edges, no cable damage

Flexible positioning - route cables from any direction

The DIN Rail

35mm steel rail, pre-installed:

Zinc-plated, corrosion-resistant

Pre-drilled mounting holes on 25mm pitch

Accepts all standard MCBs, RCDs, RCBOs

Real-World Applications

🏠 Residential

Apartment main distribution: Q5-F-24 recessed in hallway wall

Kitchen sub-circuit: Q5-S-12 surface-mounted for renovation

Bathroom lighting: Q5-F-8 - plastic body, no rust in humid environment

Smart home hub: Q5-F-36 with integrated DIN rail for smart breakers

🏢 Commercial

Office lighting control: Q5-F-18 per floor, flush with corridor walls

Retail store: Q5-S-12 behind counter - quick access for staff

Restaurant kitchen: Q5-F-24 - corrosion-proof for grease/steam exposure

Hotel rooms: Q5-F-8 - minimalist design matches interior

🏗️ Renovation & Retrofit

Old building upgrade: Q5-S series - no wall demolition required

Basement conversion: Q5-S-18 - surface mount on concrete walls

Garage workshop: Q5-S-12 - easy installation, visible circuit status

Technical Specifications

Parameter	Value
Material (Body)	ABS, UL94 V-0 flame retardant
Material (Door)	Polycarbonate (PC), UV-stabilized
Material (DIN Rail)	Steel, zinc-plated, 1.0mm thickness
Protection Rating	IP40 (indoor use)
Operating Temperature	-10°C to +50°C
Flammability	UL94 V-0 (body), UL94 V-2 (door)
Impact Resistance	IK08
Color	RAL 9010 pure white (standard)
Standards	IEC 60670-24, GB/T 17466, RoHS

Installation Guide

Flush-Mount (Q5-F)

Step 1:

Cut Opening Mark outline on plasterboard. Cut with jigsaw or drywall saw. Leave 5mm clearance for adjustment.

Step 2:

Secure Box Insert box into opening. Level with spirit level. Fix with plasterboard screws through flange holes.

Step 3:

First Fix Wiring Route cables through knock-outs. Strip and terminate at DIN rail devices.

Step 4:

Finish Wall Apply plaster or joint compound around flange. Sand smooth when dry.

Step 5:

Paint Surround Paint flange to match wall color. Mask transparent door before painting.

Step 6:

Install Devices Mount MCBs, RCDs on DIN rail. Connect conductors. Test insulation.

Step 7:

Fit Door Clip transparent door onto hinges. Verify latch function

Surface-Mount (Q5-S)

Step 1:

Mark Position Level and mark screw positions. Drill pilot holes.

Step 2:

Secure Box Fix with wall plugs and screws. Verify level.

Step 3–7:

Same as flush-mount.

Installation time: 30–45 minutes (surface) vs. 90–120 minutes (flush, including plastering)

QHECO Quality Promise

20 Years. 30 Countries. 60% Repeat Clients.

We're not the cheapest. We're the one that works.

Our Standard	Industry Average
100% dimensional inspection	10% sampling
UL94 V-0 flame retardant	V-2 or HB (lower grade)
UV-stabilized PC door	Standard acrylic (yellows in 2 years)
Pre-installed DIN rail	Separate purchase, separate installation
Individual PE bag + carton	Bulk packed, scratch risk

Packaging & Logistics

Detail	Specification
Inner Protection	Individual PE bag with silica gel
Outer Packaging	Corrugated carton, 10 units per carton
Labeling	Model, quantity, barcode, CE mark
MOQ	500 units (mixed models negotiable)
Lead Time	7–14 days standard
Shipping	FOB Qingdao / CIF worldwide
